Aerospace Hydraulic Control Valves & Modules

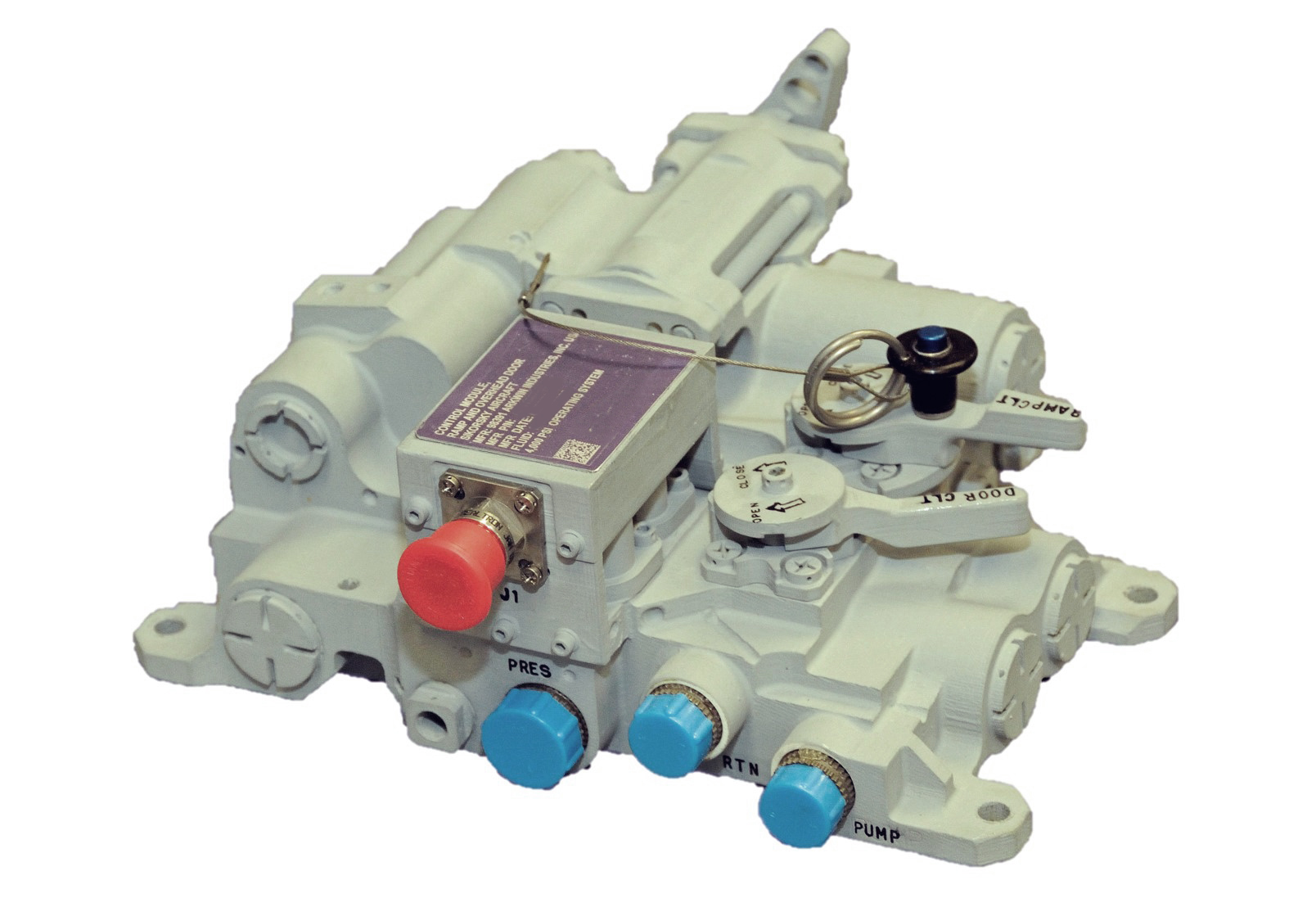

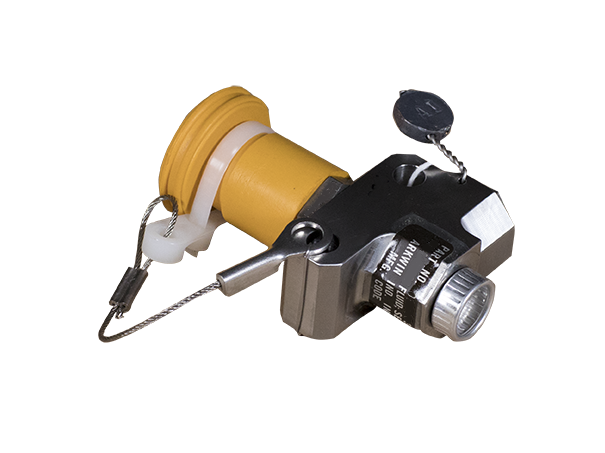

Hydraulic control valves provide directional control flow for hydraulic systems. Our multi-functional hydraulic valve modules provide actuation and system control logic. They can be used as stand alone assemblies for in-line system relief and pressure reduction at pressures up to 5,000 PSIG. We offer over 45 integrated hydraulic valve modules, including multiple valve and filtration elements as well as single function integrated valve module assemblies.
Design Features

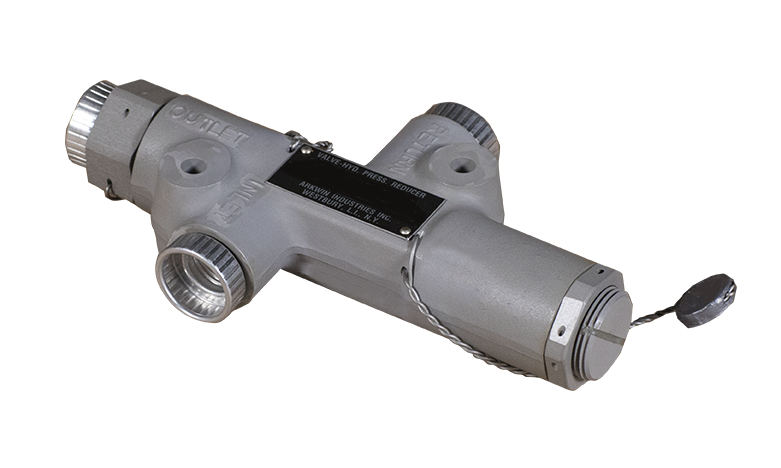

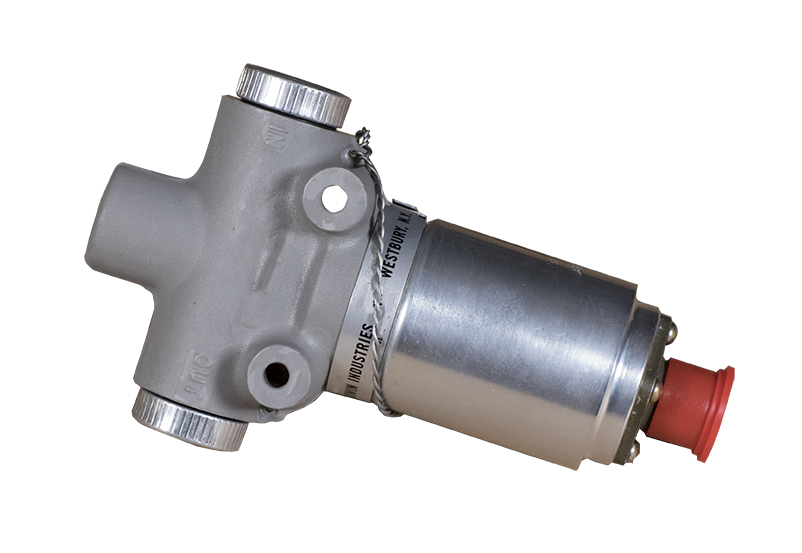

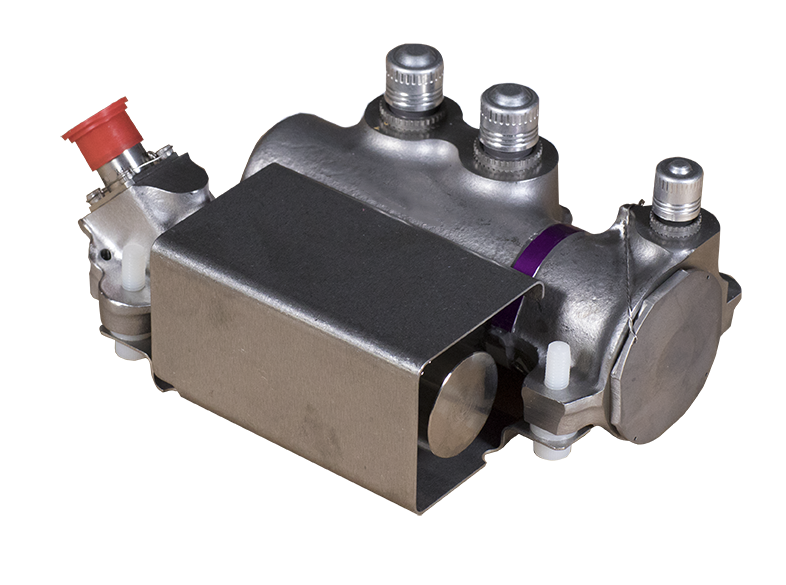

Arkwin fabricates basic hydraulic control valve elements such as pressure reducers, relief valves, and directional controls. While individual components are simpler, integrating system components into single packages can be weight effective and enhance reliability. In the sixty plus years since its founding, Arkwin Industries has emerged as a preeminent designer of such integrated packages. Note these features are often included in our bootstrap reservoirs and actuators too. Integrated modules are provided with a number of basic hydraulic valve elements or features. Typical designs include several of the items listed below.
• 2 & 3 Position Direction control
• Spool and Sleeve type
• Poppet type
• Solenoid operated pilots
• Manual/Mechanical operators and inputs
• Emergency overrides and bypass circuits
• Delay and sequencing valves
• Slow open/close features
• Filter modules per Mil-F-8815
• Differential pressure indicators
• Low and high pressure relief valves, including thermal relief
• Single and Bi-directional flow regulators and other rate controls
• Pressure reducing valves
• Pressure/temperature switches and transducers
• Unloading and isolation valves
• Bleed/dump valves and combination bleed/relief valves
• Ground support provisions
• Check Valves
• Provisions for electronics
• Rip-stop construction
• Fire resistance/proof
Performance Data
Arkwin’s modules have been designed to many stringent customer specifications. Designs utilize petroleum based oils, phosphate esters, and jet fuels as working media. Production designs utilize aluminum, steel, and titanium construction with operating pressures up to 5,000 psig. Usage spans from the A-10 to the CH-53K and many aircraft in between including V-22,A320, F-35 and more.
Select Platforms
Airbus A320
Boeing CH-47 Chinook
Boeing/Northrop Grumman F/A-18 Hornet
Fairchild A-10 Thunderbolt

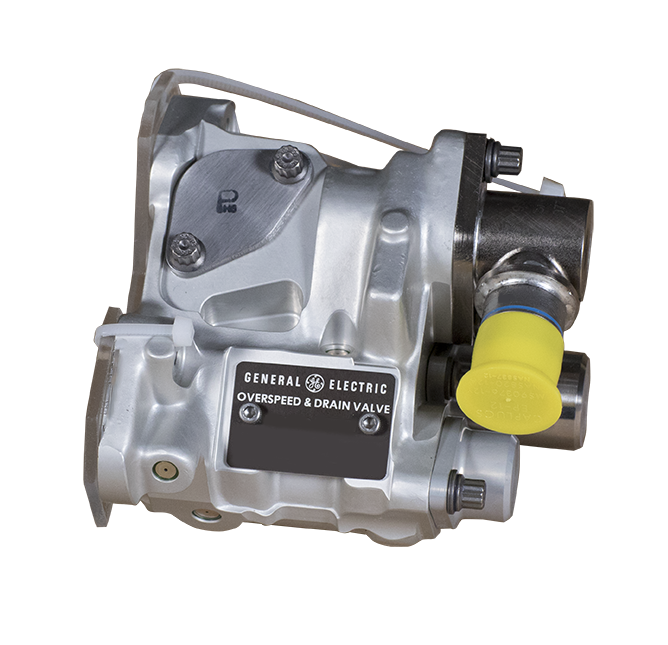

General Electric CF6 Engine
General Electric F404 Engine
General Electric T700 Engine
Gulfstream V
Honda HA-420
Lockheed C-130 Hercules
Lockheed Martin F-22 Raptor
Lockheed Martin F-35 Joint Strike Fighter
MD Helicopter MD900
Sikorsky CH-53E Super Stallion
Sikorsky CH-53K King Stallion
Sikorsky H-92 Superhawk
Sikorsky S-76
Product Resources

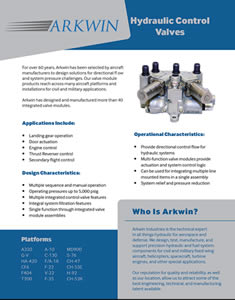

Hydraulic Control Valves

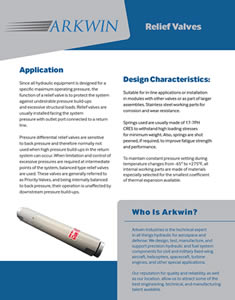

Relief Valves

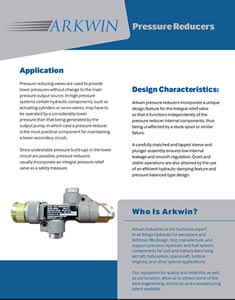

Pressure Reducers
